Safe and flexible power distribution

In industrial plants, buildings, and infrastructure, even a small disturbance in the power supply can cause serious damage – not only to industrial and building operations but also to people. That is why the standards for safe power distribution are so high.
In addition, today’s increasingly automated and digitized production processes and buildings require increasingly adaptable power distribution. They need a flexible layout, high availability, and personal and plant safety.

Switchboard 1.png

Systematic power distribution

Home: Imprint

SIVACON S8 - features

Feature Design Side Wall.jpg

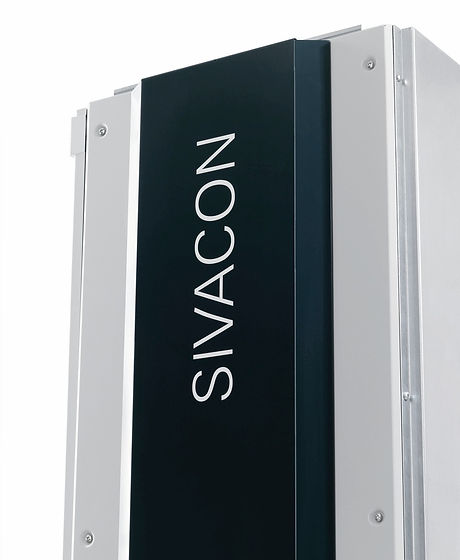

Design side wall

SIVACON S8
for maximum demands

Safe down to the last detail

The SIVACON S8 low-voltage power distribu- tion board ensures a high level of personal and plant safety. Continuous testing to
IEC 61641 and VDE 0660 Part 500-2 guaran- tees safety in the event of an arcing fault. Many well-thought-out details, including a reduced use of plastic parts and insulated main busbars, guarantee maximum safety and plant availability, resulting in low liabil- ity risk.

Flexible and adaptable

Thanks to its modular concept and wide variety of components, the SIVACON S8 low- voltage power distribution board can meet all individual requirements. For instance, the profile bar or flat copper design of the vertical section busbars allows for tap-offs in the smallest of grids. The switching device holders are also modular, with a graduated depth.

Efficient throughout the entire process

Over 320,000 switching boards have already been launched on the market by SIVACON Technology Partners – proof that technol- ogically sophisticated solutions can be effi- ciently implemented with the SIVACON S8 low-voltage power distribution board. Power distribution is easy to plan, and the distribu- tion board can be quickly configured using the SIMARIS software tools. The result: time savings and planning reliability throughout the entire process.

Your benefit

  • Emphasis on maximum personal and plant safety

  • Flexible layout thanks to a modular concept and wide variety of parts

  • Efficient implementa- tion of technologically sophisticated solutions

SIVACON S8 - system overview

Circuit-breaker design [1]
Universal mounting design [2]
Fixed-mounted design [3]
In-line design, plug-in [4]
In-line design, fixed-mounted [5]
Reactive power compensation [6]
Busbar position
Top, rear
Top, rear
Top, rear
Top, rear
Rear
Without, top, rear
Internal separation
Form 1, 2b, 3a, 4b, 4 type 7 (BS)
Form 3b, 4a, 4b, 4 type 7 (BS)
Form 1, 2b, 3b, 4a, 4b
Form 3b, 4b
Form 1, 2b
Form 1, 2b
Cubicle width (mm)
400, 600, 800, 1000, 1400
600, 1000, 1200
1000, 1200
1000, 1200
600, 800, 1000
800
Type of connection
Front or rear
Front or rear
Front
Front
Front
Front
Rated values
Up to 6,300 A
Up to 630 A Up to 250 kW
Up to 630 A
Up to 630 A
Up to 630 A
Unchoked up to 600 kvar Choked up to 500 kvar
Functions
Incoming feeder Outgoing feeder Bus coupler
Cable feeders Motor feeders (MCC)
Cable feeders
Cable feeders
Cable feeders
Central compensation of reactive power
Mounting design
Fixed-mounted design Withdrawable design
Withdrawable design Fixed-mounted design with compartment doors Plug-in design
Fixed-mounted design with front covers
Plug-in design
Fixed-mounted design
Fixed-mounted design

SIVACON S8 - simple integration of low voltage power distribution components

Title
3WL air circuit breakers
3VA molded case circuit breakers
3NJ4 fuse switch disconnectors
3NP1 fuse switch disconnectors
3NJ6 switch disconnectors with fuses
Communication capability
Early fault detection thanks to connection to higher-level control systems.
Supports all common communication options: transparency of switching states and energy flows.
Special features
Numerous sizes permit flexible use. Fixed-mounted and withdrawable designs for fast and easy maintenance. Comprehensive accessories
High breaking capacity with compact design. Superior selectivity properties. Comprehensive accessories for flexible function expansions
Fast fuse tripping characteristic to prevent damage to plants and machines. Wide range of connection options.
Compact design requires very little space. Fast, safe modulation. Switching position indicator and fuse monitoring: integrated line monitoring to ensure plant availability
Compact design requires very little space. Easy to replace in-line disconnectors. High switching capacity.
Function
People and plants protected against over- load and short circuit.
High level of personal and plant safety. Integrated measuring functions.
Load switching and disconnecting in a single system.
Reliably protect people and plants.
Reliably protect people and plants.

Connection to energy management, control, and automation systems

Reduce energy costs, increase plant availability
For industrial plants to operate efficiently, their load must be constantly optimized and downtime reduced. The 7KT/7KM PAC measuring devices and communication capable 3WL/3VL/3VA circuit breakers integrated in the power distribution board can help you achieve this.
They record precise and reliable energy values for electric feeders or individual loads because only by knowing your energy consumption can you reduce energy costs. For the further processing of measured data, additional devices can easily be integrated into higher-level automation and energy management systems, thanks to the wide variety
of communication options they offer. The communication- capable devices supply important measured values via standardized bus systems for the purpose of assessing the system status and power quality.


The communication-capable 7KM PAC measuring devices supply system status data


TÜV-certified power monitoring system: ideal technical basis for industrial energy management in accordance with ISO 50001

SIVACON S8 –
8 good arguments for safety

The SIVACON S8 low-voltage power distribution board ensures a high level of personal and plant safety – at all times and everywhere.

safety 1 copy.jpg
  • Design verification by verification test in accordance with IEC 61439-1/-2

  • Design-verified connection to the SIVACON 8PS busbar trunking system

safety 2.jpg

High level of personal safety thanks to roof with pressure relief

safety 3.jpg

Comprehensive certification

  • High degree of test coverage

  • Certification for use on ships and offshore platforms

  • Earthquake upgrade

safety 4.jpg

This is your Feature description. Write a short blurb explaining what the feature is and why it matters for visitors, customers or clients. Don’t be afraid to toot your own horn! Take this opportunity to emphasize the important benefits or key advantages.

safety 5.jpg

Safety in the event of an arcing fault, thanks to testing in accordance with IEC 61439: restriction of the effects of the arcing fault

  • Within the power distribution board

  • To a section

  • To a compartment

safety 6.jpg

An arcing fault barrier restricts the effects to one section when an arcing fault occurs.

safety 7.jpg

The insulated main busbars prevent the occurrence of arcing.

safety 8.jpg

Safe housing

  • Frame made from stable sheet-steel profiles

  • Sendzimir-galvanized surfaces on frame components, bases, rear panels, and roof plates

SIVACON S8 –
8 good arguments for flexibility

Thanks to its modular concept and wide variety of parts, SIVACON S8 can meet the most demanding requirements and satisfy all individual needs.


A variety of connection options via vertical section busbars: flexible layout and optional expansions


Supply unit and feeder

  • Via cable or SIVACON 8PS busbar trunking system from 630 to 6,300 A

  • From the top or bottom

  • Aluminum or copper busbar trunking

    system


The section can be installed either single or double-fronted together with a main busbar system or back-to-back with a separate main busbar system.


The standardized, circumferential rows of holes in the sheet-steel profiles allow for individual expansion.


High level of flexibility thanks to innovative modular technology

• Different installation designs can be combined in one section

• Functional units are easy to exchange or add


The functional compartments can be divided as required with add-on modules.


Depending on requirements, different degrees of protection can be implmented with the roof plate – ventilated or non-ventilated.


The universal door hinge allows the hinge side to be easily changed.

SIVACON S8 –
8 good arguments for efficiency

The SIVACON S8 low-voltage power distribution board permits the efficient implementation of technologically sophisticated solutions. The proof: Over 320,000 switching boards have already been installed in a wide variety of applications by SIVACON Technology Partners.


Economical design

  • Circuit breaker section provides enough space for up to three circuit breakers

  • Flexible installation design: fixed-mounted or withdrawable design for easy maintenance


Efficient, flexible operation

• High packing density with up to 35 outgoing feeders per section

• Fast exchange under operating conditions


Reduced service time thanks to maintenance-free section connections


The patented ventilation slots reduce maintenance effort.

• Cleaning is possible with the door closed and from the outside

• Low repair costs


The patented connection terminals are safe, flexible, and easy to connect during installation and in the event of subsequent changes.


Reliable partners

  • Maximum technological progress through constant innovation guarantees the highest quality

  • Brand strength combined with expetise gained over many years and the availability of a local partner on-site


The SIMARIS software tools save time throughout the process from planning to configuration all the way to plant documentation.


The innovative, communication-capable SENTRON components are easy to integrate

• System status and energy flows are made transparent

• For energy-efficient plant operation
